| Brand Name: | TIANFON |
| Model Number: | TF-G005 |
| MOQ: | 1000 Watt/Watts |
| Price: | US $0.05-0.18 / Watts |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 Watt/Watts per Week |
Solar Mounting Bracket Solar Rooftop PV Mounting Racks Solar Energy Mounting Systems
The unique design of the solar bracket allows the module to be angled according to different regions, making full use of local solar resources to achieve the maximum power generation efficiency of the solar module. At the same time, the connection mode, material selection and load force analysis of the photovoltaic module are analyzed and practiced in detail, so that it has good seismic resistance, wind resistance, snow pressure resistance, corrosion resistance and other physical properties, so that the photvoltaic module is applied in a wider range of areas.
1. Technical Parameters :
| Item | Parameter |
| Application | Mountain, Plain, Highland, Desert |
| Installation Angle | Fixed degree,5-45° |
| Wind Load | ≤60m/s |
| Snow Load | ≤1.4KN/m² |
| Applicable Module | Framed or Frameless |
| Material | Q235B,Q345B,Component Aluminum Alloy & Stainless Steel etc, Customized upon requirement. |
| Module Orientation | portrait or landscape |
| Module type | Any type of PV moduels |
| Surface Treatment | Hot Dip Galvanizing & Anodized |
| Warranty | 10 years warranty and 25 years duration |
2. Detailed Introduction:

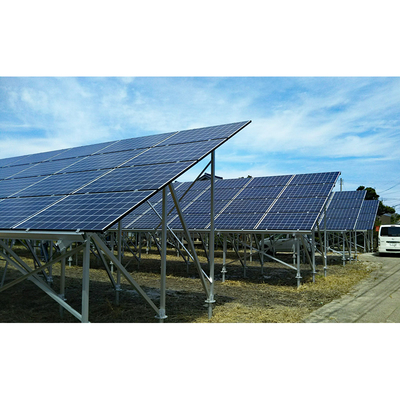

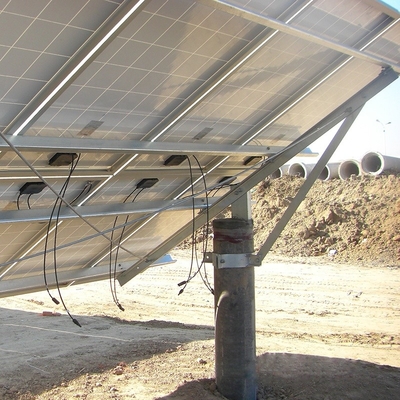

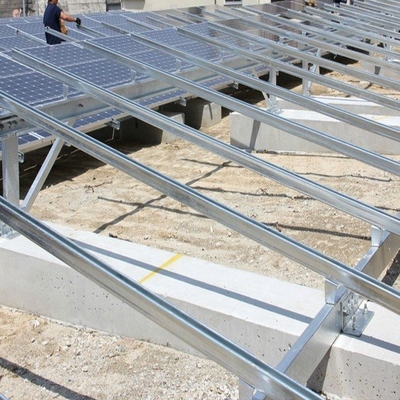

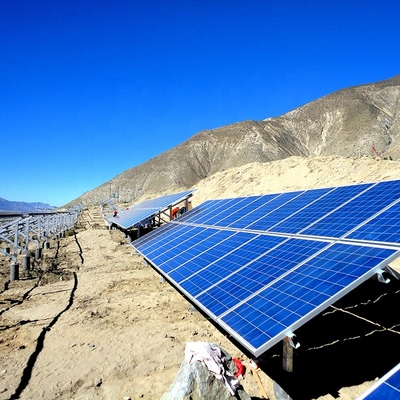

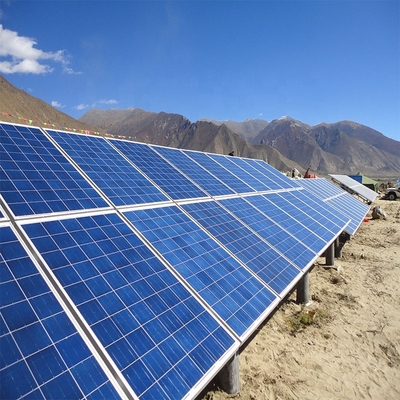

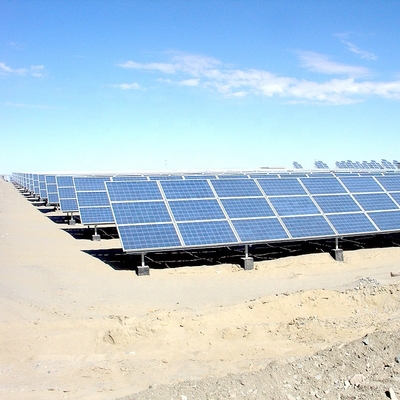

3. Project Display:
4. Company Introduction:
5. Main product:
6. Certificates:
7. Packing:
8. Cooperation Partners:
9. Necessary information:
For the solution and quotation, we need some details as the following
| No. | Item | Remarks |
| 1 | Location, Country of the Projects | |
| 2 | What's Total Capacity of solar Project ? | |
| 3 | Max Wind Speed m/s | |
| 4 | Snow Load (KN/㎡) | |
| 5 | which type landform the ground is ? | |
| A. Offshore Sea and island, coast, lake shore and desert area | YES / NO | |
| B. Fields, villages, jungles, hills and sparse houses and suburbs | YES / NO | |
| C. Urban areas with dense clusters of buildings | YES / NO | |
| D. Urban areas with dense buildings and high houses | YES / NO | |
| 6 | Foundation Forms | |
| A. PHC Pile (pretensioned spun high-strength concrete pile) | YES / NO | |
| B. Ramming Pile; | YES / NO | |
| C. Concrete; | YES / NO | |
| D. Bored Pile; | YES / NO | |
| E. Others | ||
| 7 | Layout of Solar Panels | |
| 8 | how many modules per array | |
| 9 | Size of solar panels | |
| 10 | Installation angle of solar panels | |
| 11 | Panel Weight | |
| 12 | Watts per Solar Panel | |
| 13 | Requirements on Main Materials of Structure | |
| 14 | Requirement on the lowest height between solar panels and ground | mm |
| 15 | How many arrays / units | |
| 16 | other information |
