| Brand Name: | TIANFON |
| Model Number: | Solar Panel Roof Mounting Systems |
| MOQ: | 100KW |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100MW/month |
Corrosion Resistant Aluminum Rails Cement Blocks Solar Panel Roof Mounting Systems
The solar mounting is a solution including steel structure and aluminum rails .it is suitable for both small and large-scale solar plants .with a flexible connection, it can be installed onto the concrete base, and also the earth ground, even the slope can also be workable.
Quick Information:
► Applicable Module: Framed, frameless
► Ground Clearance: ≥0.15m
► Module Orientation: Portrait, landscape
► Array Layout: According to the actual situation
Product Parameters:
| Mount Type | Solar mounting bracket/ pv solar panel tile roof mount/ bracket/ racking system |
| Application | Framed solar panel for any size |
| Panel direction | Vertical or landscape |
| Structural materials | Aluminum, stainless steel |
| Survival wind speed | Up to130mph(60m/s) |
| Design snow pressure | Up to 30psf(1.4KN/m2) |
| Inclination | 0 degree (the same angle as roof) |
| Treatment | Anodized, Galvanized |
| Warranty | Design Life for 25 years, quality assurance for 10 years |
Features:
--Flexible to meet any solar panels
--High competitiveness on materials cost
--Enables easy,fast and cost-effective installation
--Screws and nuts go with every component needed
--High quality material in galvanized steel and SUS 304
--100% lightweight and corrosion resistant aluminum rails
--Fasteners and rail nut fully configured to save extra parts purchasing

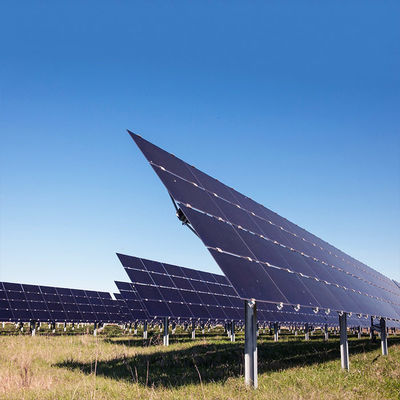

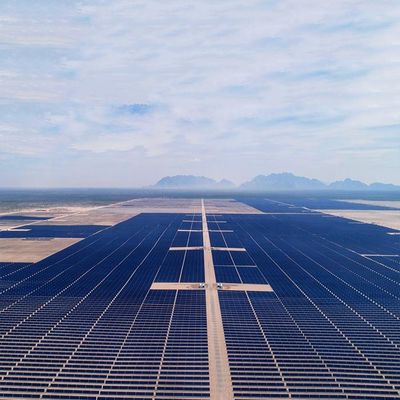

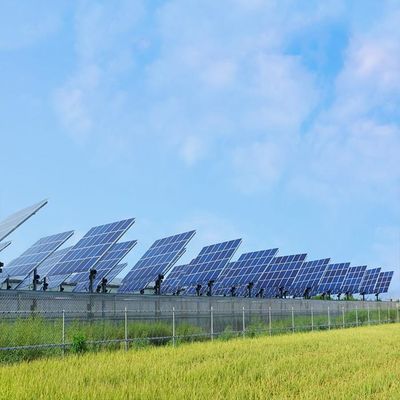

Application:
Packaging & Shipping:
Our Certificates:
